WF-CO-30KGF Coaxial Thrust Stand

WF-CO-30KGF Coaxial Thrust Stand

WF-CO-30KGF Coaxial Thrust Stand

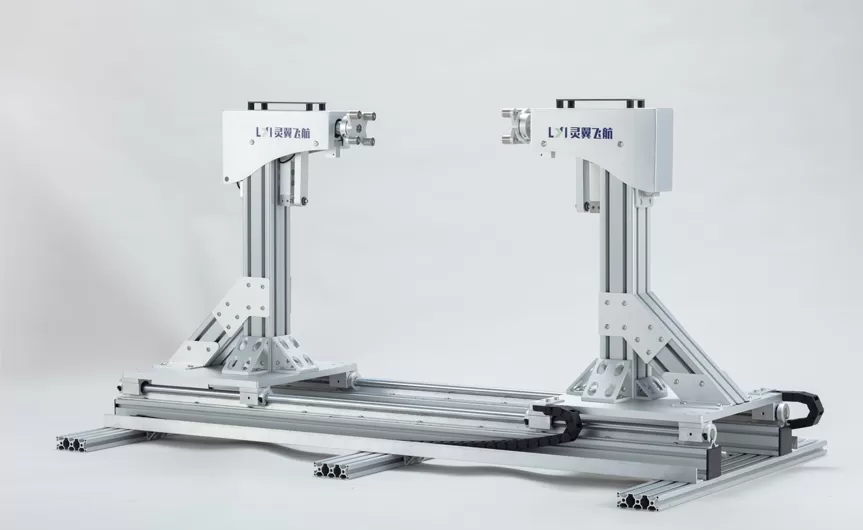

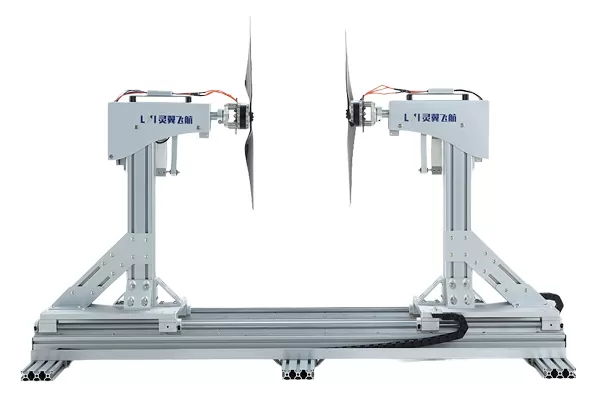

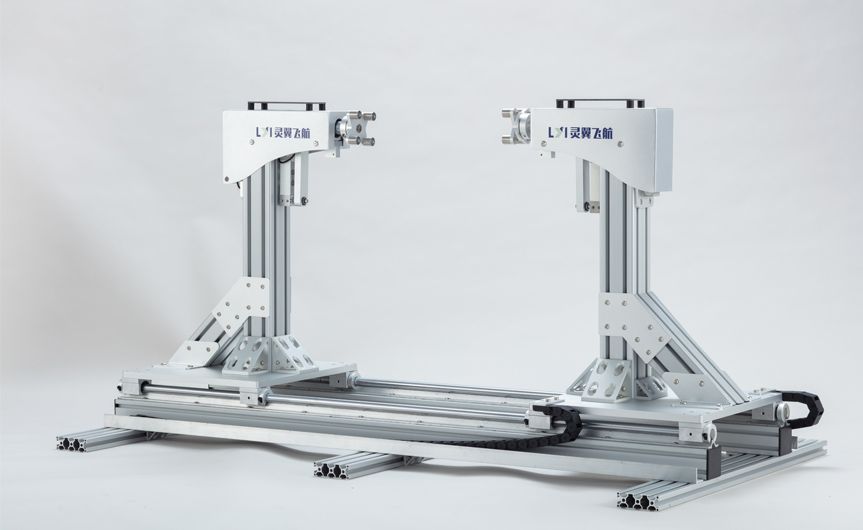

WF-CO-30KGF Coaxial Thrust Stand is a face-to-face drone thrust test stand. It allows the testing of two coaxial motors and propellers simultaneously, which is capable of testing single motor and propeller as well with coaxial motor.


Each test bench can measure max 30kgf of thrust and max 40 inch propeller. The distance between the propellers can be adjustable with the sliders.


Specification of Coaxial Thrust Stand

Suggested Propulsion System   Max thrust>3kg
Max Thrust30KG
Max Propeller40Inch
Torque20 N•M
Current0-150A
Voltage5-65V
RPM30-15000 RPM

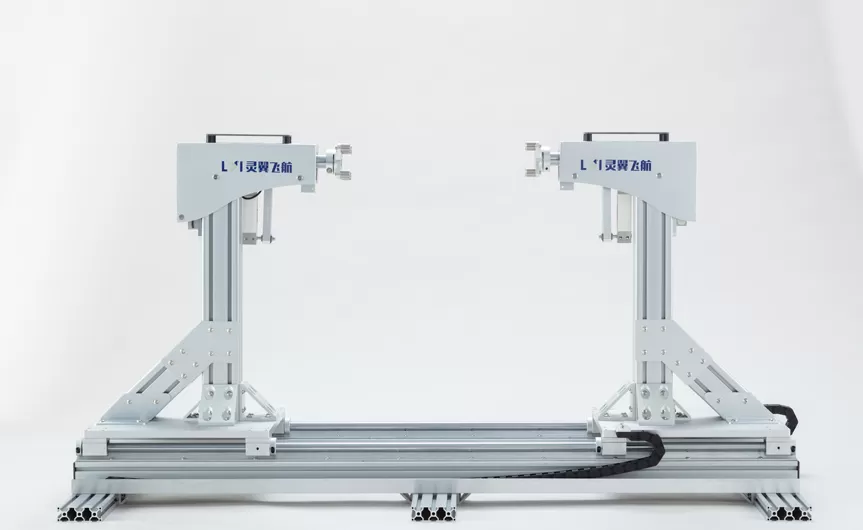

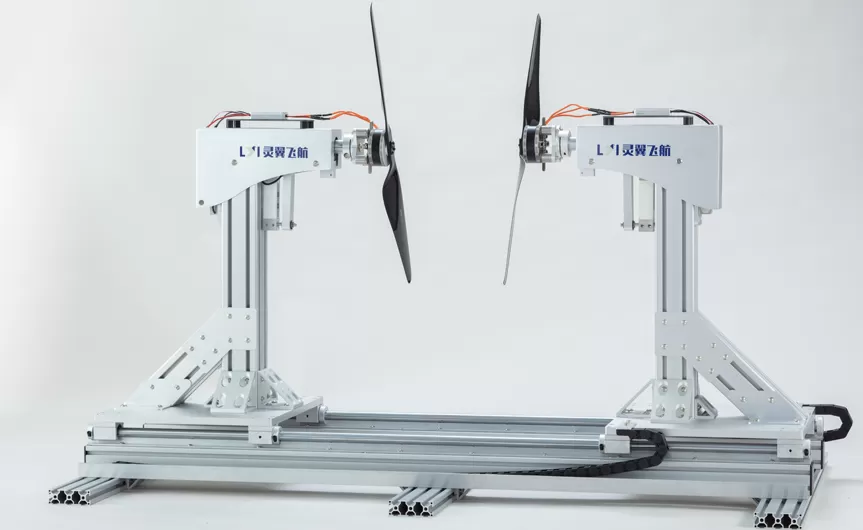

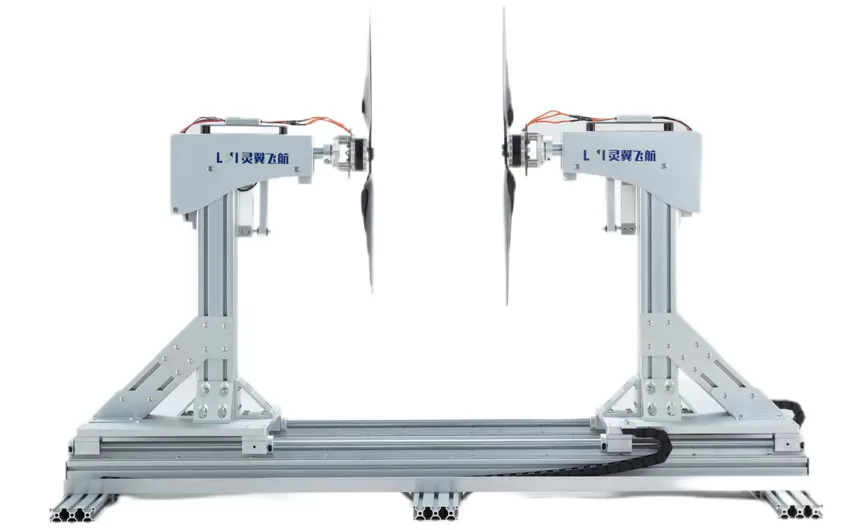

Flexible Sliders Adjust the Distance & Optimize the Test

  • Test two motors and propellers simultaneously.

  • Capable of testing single motor and propeller as well with coaxial motor.

  • Axial distance can be adjusted with sliders.

  • Each stand can test up to 30kgf of thrust.

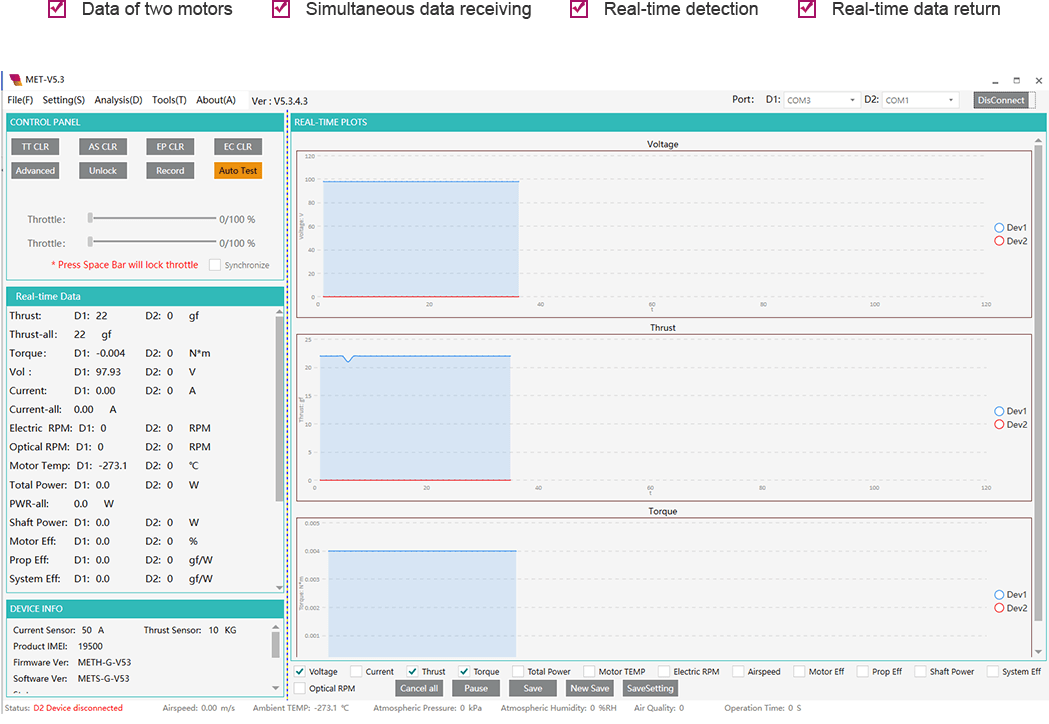

D-MET Software for Coaxial Thurst Test

D-MET software allows you to monitor the real-time data of two motors and propellers simultaneously, which includes the efficiency of thrust, torque, voltage, current, RPM, and propeller. With the support of D-MET software, the test efficiency and result accurancy will be definitely much improved.

WF-CO-30KGF Coaxial Thrust Stand

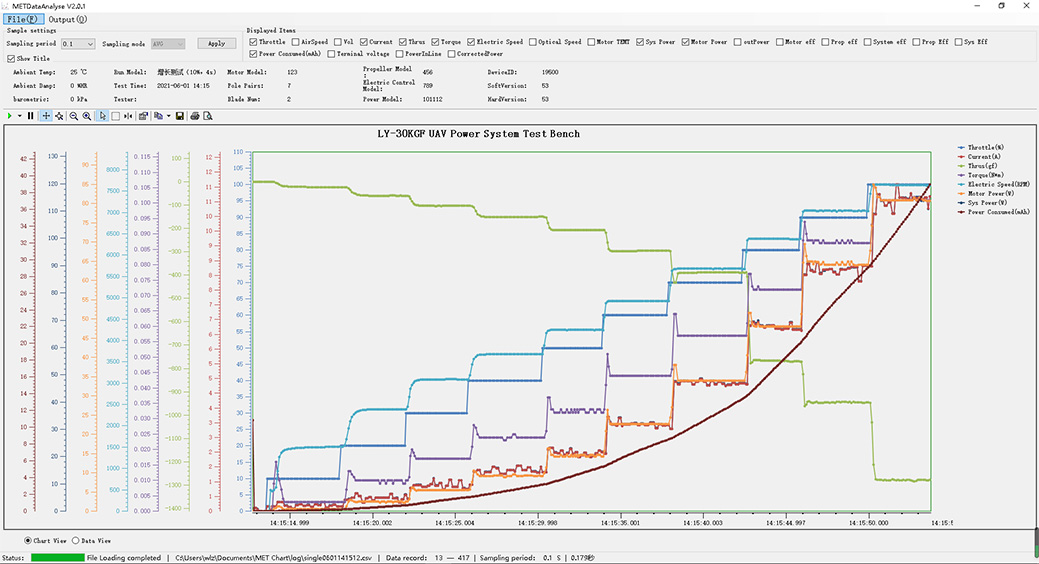

D-MET Software for Coaxial Thrust Test

D-MET Software for Coaxial Thrust Test will show all the relavant data on the line chart, and the tester can see and contrast the data from different dimensions, which makes the test work much easier and the improved details visibler.

WF-CO-30KGF Coaxial Thrust Stand
