Oct. 17, 2025
Dear clients, Our LY-70KGF thrust stand is currently on sale.
Here are the basic specification, which can meet your testing requirements from 7kgf to 70kgf
Basic parameters | Operating Temp | 0 ~ +40 ℃ |
Operating Humidity | ≦80% | |
Storage Temp | -20~ +60 ℃ | |
Net weight | 50kg | |
Dimension | 1200*790*1019mm | |
Propulsion system | Min test propulsion set | Max thrust (100% throttle)>7kgf |
Max propeller | 60 inch | |
Voltage & Current | Voltage Range | 5 〜 500 V |
Voltage Resolution | 0.01 V | |
Voltage Accuracy | 0.05%+0.05%FS | |
Current Range | 0~ 300 A | |
Current Resolution | 0.01 A | |
Current Accuracy | 0. 1%+0. 1%FS | |
Thrust | Range | 70 kgf |
Resolution | 1 gf | |
Accuracy | 0. 1%+0. 1%FS | |
Torque | Range | 50 N·m |
Resolution | 0.01 N·m | |
Accuracy | 0. 1%+0. 1%FS | |
Commutation Speed (RPM) | Range | 200000RPM/Pole pairs |
Resolution | 1 RPM | |
Accuracy | 0.05% | |
Optical Speed (RPM) | Range （Two blades） | 200000 RPM/Optical stickers |
Resolution | 1 RPM | |
Accuracy | 0.05% | |
Humidity Accuracy | ±3% |
We offer the optional:
Optional | ||
Safety cage | Material | Aluminum frame+iron mesh |
Dimension | 1650*300*1753mm | |
Protection Mode | Annular protection | |
Calibration tool | Thrust & Torque | M1 high-precision weight |
RPM | Non-contact tachometer | |
Torque Lever | Custom-made | |
Voltage | Digital multimeter | |
Current | Digital clamp meter | |

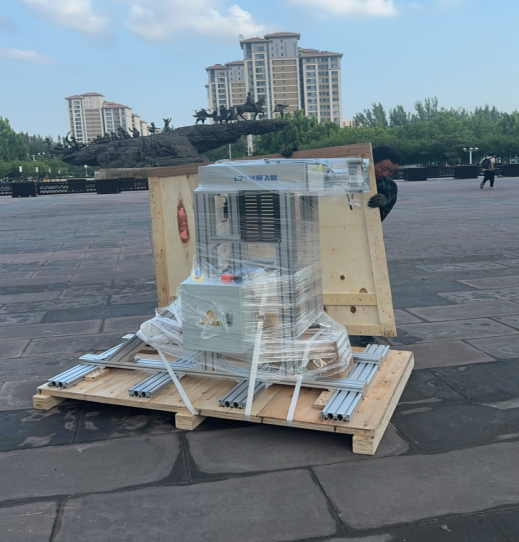

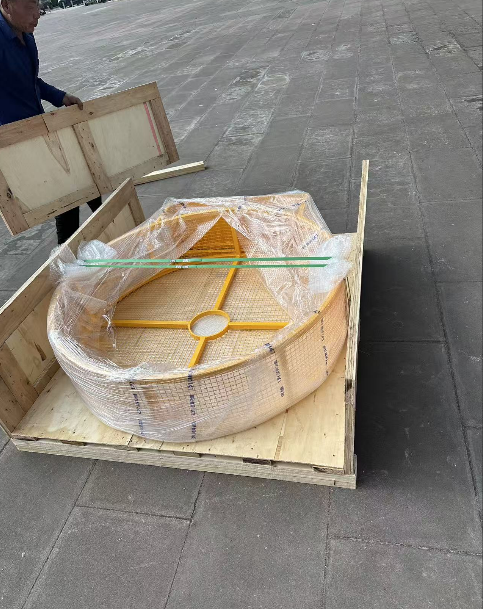

Pic: safety cage with wheels: (while shipping, we pack it very carefully)

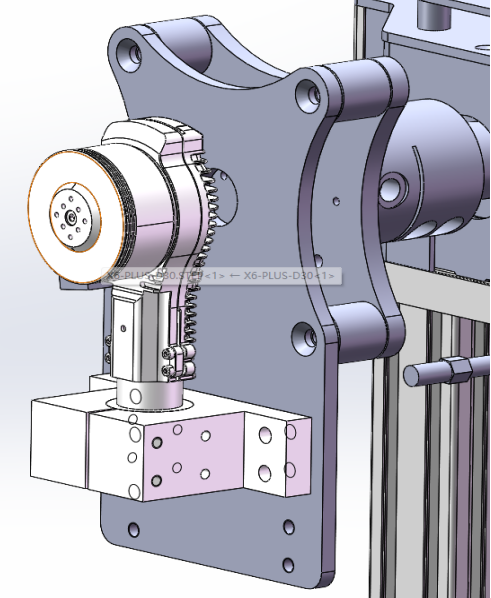

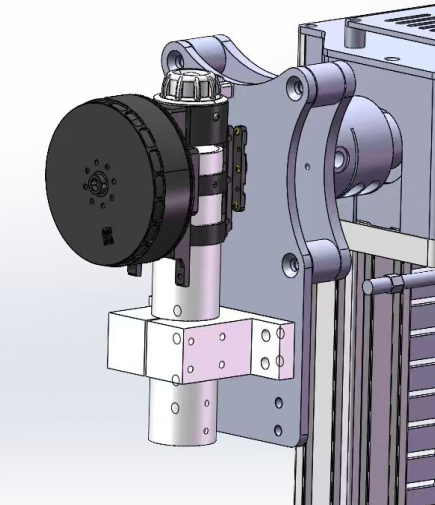

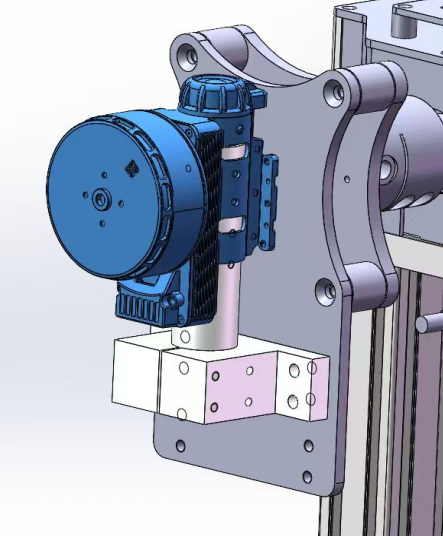

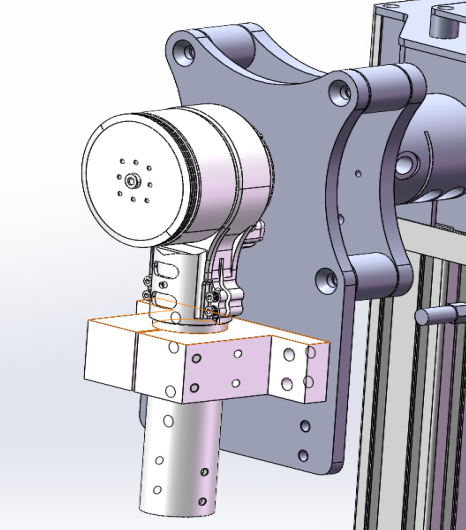

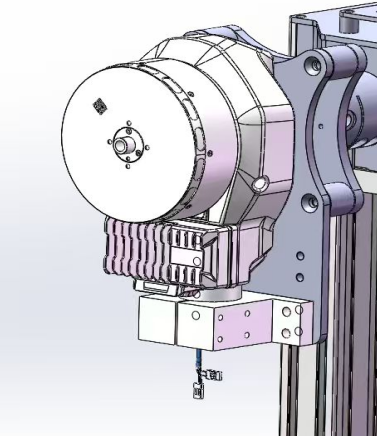

As our overseas clients requirements, we custom the Hobbywing motor install mounts for them to use on the LY-70KGF UAV motor and propeller thrust test stand. Here are the module shows:
Usually we offer three universal install mounts for our clients. If you have the special requirements like hobbywing X series, just let us know. We will make our best effort to support your testing.
This year, we have sold about more than 200 set of LY-70KGF thrust stand now. For the thrust stand, the max we can make is to 1000kgf thrust. Don't hesitate to contact us.
Best regards,
Sandy Han
WING FLYING (TIANJIN) TECHNOLOGY CO.,LTD.
E-mail: sandy@wing-flying.com
Cell phone & WhatsApp No.: 0086 13042251024
Add.: 7th Floor, B2#，Animation Building, Sino-Singapore Tianjin ECO-CITY, China
