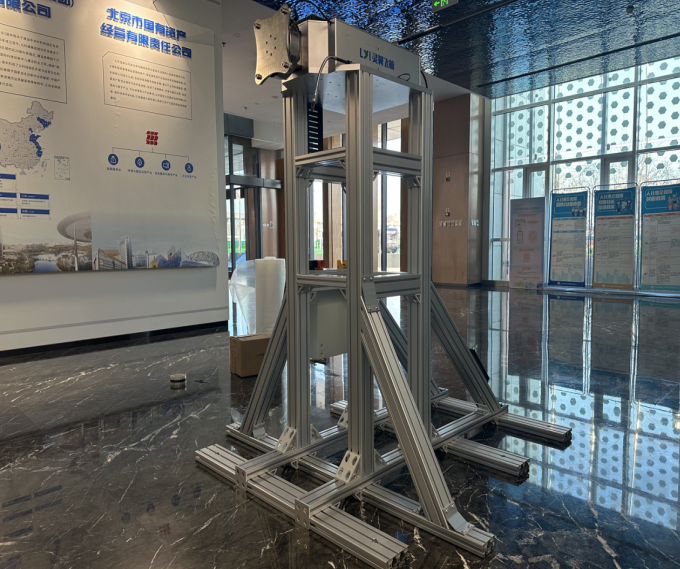

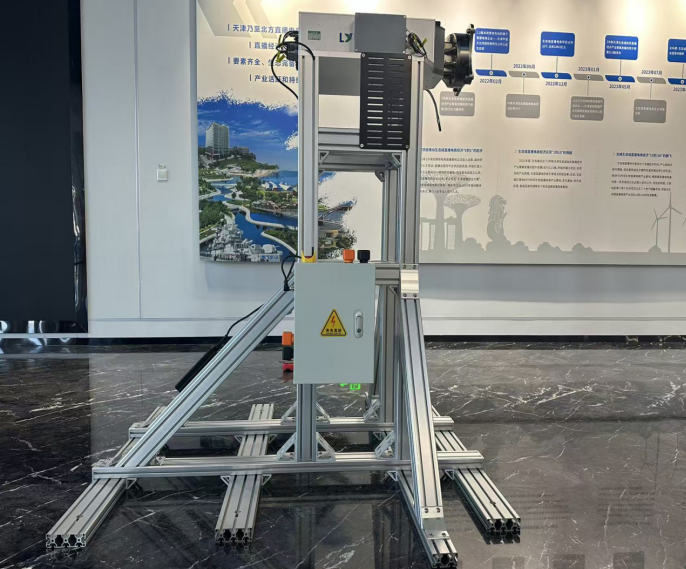

LY-250kgf Six-Component Balance Thrust Test Bench for UAV Motor Wind Tunnel Testing

It is customized as client’s requirements. One of the main purposes is to test their UAV motor under the wind tunnel environment.

Specification of LY-250KGF Six-Component Balance

A six-component balance is a high-precision sensor capable of simultaneously measuring forces in three directions (lift, drag, and lateral force) and moments in three directions (pitch, yaw, and roll moments).

Core Applications and Key Technologies:

Six-component balances vary significantly in design and specifications depending on the application scenario:

Aerospace and Hypersonic Research

· Typical Applications: Primarily used for nozzle thrust vector testing, scramjet engine thrust measurement, and wind tunnel testing of aircraft models.

External Force Measurement for Large Structures

* Typical Applications: Used to measure the loads on large structures (such as entire wing sections or full-size components) during static or fatigue tests.

* Main Types and Characteristics: Primarily assembled external balances based on tension and compression sensors, with extremely large measuring ranges , complex systems, and integrated tare balancing and safety locking systems.

How to Choose and In-Depth

To choose or study a six-component balance in your test bench, you must first clarify your core needs:

1. Measurement object and scenario: Is it a small wind tunnel model, engine jet, or a large ground structure?

2. Load range and accuracy: The approximate order of the forces and torques to be measured, and the allowable error range.

3. Operating environment: Does it involve special conditions such as high and low temperatures, vibration, or shock?

4. System integration: Does it require a matching calibration, automatic balancing, or data acquisition system?

If you want to custom the six-component balance thrust stand, welcome to contact us by sandy@wing-flying.com or whatsapp: 008613042251024.

Thank you.
