The LY-MAX propeller performance test system consists of LY-MAX propeller test stand (including sensor, tilting mechanism, acquisition box, water cooling machine, host), switching power supply, power system (motor, electric adjustment, propeller).

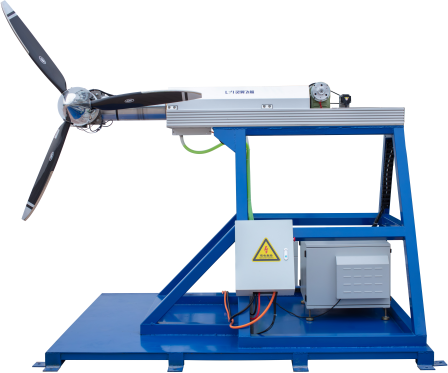

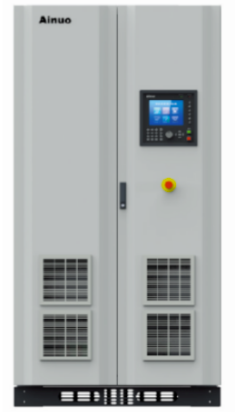

Fig 3-1-1 LY-MAX propeller test stand Fig 3-1-2 Switching power supply

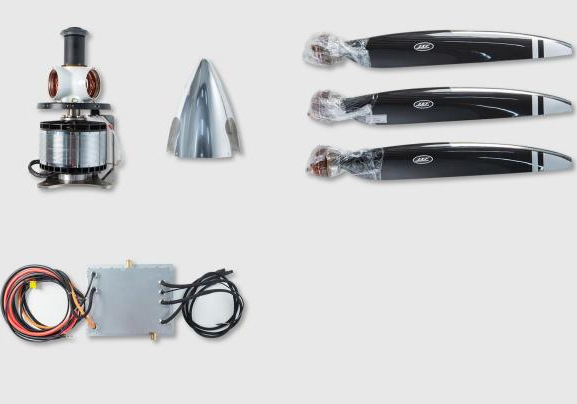

Fig 3-1-3 Power system (motor, electric adjustment, propeller)
The LY-MAX Propeller Performance Testing System is specifically developed for testing in icy weather conditions. It can achieve a horizontal tilt of ±90 degrees. Equipped with six-axis, temperature, voltage, current, speed, and vibration sensing systems, it can test data such as the pull force, torque, speed, voltage, and current of the power system. The maximum testing power of the LY-MAX Propeller Performance Testing System is 200KW, and the maximum propeller diameter it can test is 100 inches.
The LY-MAX propeller performance test system is equipped with MET series test software. MET series software is a power system test software specially designed for the LY-MAX propeller performance test system. It is connected with the power system test bench to realize the measurement and data processing of the UAV power system data.
LY-MAX propeller performance test system | ||
LY-MAX propeller test stand | ||
Basic equipment parameters | The test bench bears weight vertically | More than 600KG (ground nail fixed) |
The test bench carries the torque at its center | More than 6800Nm (ground nail fixed) | |
Test the propeller diameter | ≥72 inch | |
Measure the voltage and current | Voltage range | 0 ~ 1000 V |
voltage accuracy | ±0.1V | |
Current flow range | 0 〜 400 A | |
Current accuracy | ±0.05A | |
Digital six-component platform | Range (ZXY axis) | 600kg/300kg/300kg/800NM/400NM/400NM |
resolution ratio | 0.01kg | |
repeatability precision | 0.5%FS | |
Accuracy | 3%FS | |
frequency of sampling | 1000HZ | |
Photoelectric speed module | Range (two-bladed propeller) | 0 〜 12000 RPM |
Resolution (two-blade propeller) | 0.1 RPM | |
Accuracy (two-bladed propeller) | 0.05% reading ± 0.05%FS | |
Thermocouple temperature measurement module | range | -50 〜 +300 ℃ |
resolution ratio | 0.1 ℃ | |
accuracy | ±0.5 ℃ | |
Pressure environment module | Pressure range | 80 〜 120 kpa |
Pressure accuracy | ±0.02 kpa | |
Humidity range | 0 〜 100 %RH | |
Humidity and humidity | ±3% | |
Three axis vibration sensor | range | 0 ~ 50 G |
resolution ratio | 0.01g | |
response frequency | 0.5-10khz | |
Motor tilting mechanism | bearing | 100KG |
Angle of tilt | ±90° | |
direct-current main | ||
direct-current main | power | 120KW |
voltage | 800V | |
current | 400A | |
dynamical system | ||
any power-generating or power-driven machine | power rating | 50KW |
instantaneous power | 100KW | |
Electric control | power rating | 50KW |
instantaneous power | 100KW | |
cooling-down method | liqukd cooling | |
levels of protection | IP54 | |
variable pitch airscrew | Blade size | 72inch |
maximum shaft power | 85KW | |
Maximum static thrust | 250KG | |
