UAV Engine Test System WF-EN-17-MAX: User Manual

Dec. 17, 2024

Dear Client, Thank you for your trust in choosing WING FLYING 's products. WING FLYING always believes that professionalism creates quality and insists on customer first. Continuous investment in product research and development, pursuit of precision, efficient and excellent service, make us continue to innovate and launch products that satisfy customers. This manual will guide you to use the WF-EN-17-MAX UAV engine test system safely and efficiently. Before operation, please be sure to read this manual and operate according to the instructions in the manual.





Product overview



1.System composition

The WF-EN-17-MAX UAV engine test system consists of the WF-EN-17 MAX test bench (including various sensors, acquisition box, test bench accessories) and MET-E series test software.



2. Function introduction

The WF-EN-17-MAX UAV engine test system is a test system developed specifically for UAV engines. It is equipped with sensors such as thrust, torque, RPM, fuel consumption (optional), temperature, and environmental parameters. It can measure data such as thrust, torque, speed, fuel consumption, temperature, and environmental parameters. The WF-EN-17-MAX UAV engine test system is equipped with MET-E series test software. The MET test software is connected to the power system test bench to measure and process the data of the UAV engine.



3. System logic operation diagram

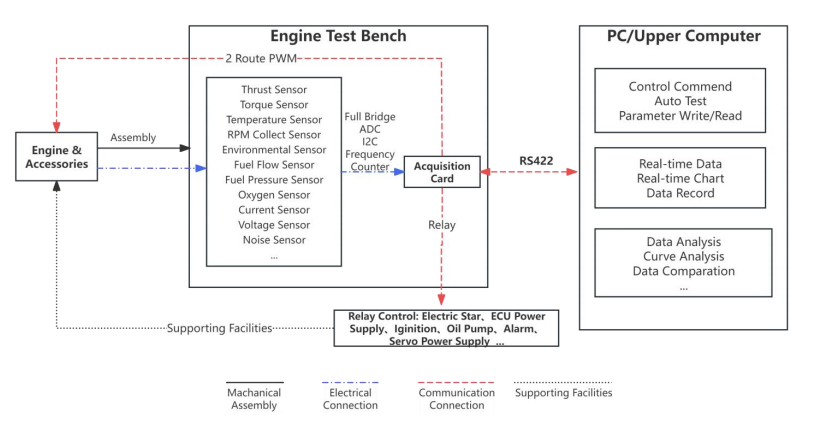

FIG 3-3-1 is the logic diagram of the test bench system operation , which clearly shows the logical control relationship between the test bench, engine, relay, and upper computer, as well as the test bench operation mechanism.



WF-EN-17-MAX UAV engine test

FIG 3-3-1 The logic operation diagram of the test bench



*The engine, accessories and computer in the system operation logic diagram are provided by the user.

*Sensors such as fuel flow pressure, fuel pressure, oxygen concentration, current, voltage and noise are optional.



For more detailed product user manual, please download our file: https://www.wingflyingtech.com/download/
