How Test Stands Measure Drone Performance?

Nov. 28, 2023

Drones, also known as unmanned aerial vehicles (UAVs), are flying machines that operate without a human pilot onboard. They can either fly independently or be controlled remotely by an operator. These versatile devices serve a wide range of purposes including aerial photography, delivery services, surveillance, agricultural tasks, entertainment, and more. Despite their usefulness, drone users encounter a significant challenge: the limited flying time and distance their drones can cover. These limitations are largely determined by the effectiveness of the propulsion systems used in the drones.


Hence, it becomes essential for drone enthusiasts to test and enhance the performance of their drone motors and propellers. Improving these components is crucial for expanding the capabilities of drones while minimizing their energy consumption. In this article, we will delve into the ways in which test stands are utilized to measure various aspects of drone performance. These include evaluating the propulsion system, assessing battery efficiency, analyzing environmental factors, ensuring stability during flight, and determining the capacity for carrying payloads.

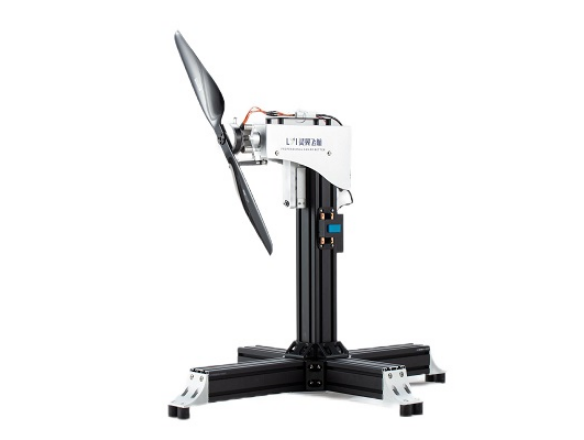

Motor Test Stand

Propulsion System Testing


The propulsion system of a drone comprises the motor and propeller, responsible for generating the necessary thrust and torque to maneuver the drone in flight. Several factors influence the performance of this system, including motor characteristics like type, size, speed, current, voltage, torque, power, and propeller specifications such as type, size, pitch, shape, and the number of blades. These factors interact and collectively determine the system's efficiency, which quantifies the ratio of mechanical power output (thrust multiplied by speed) to the electrical power input (voltage multiplied by current).


A test stand serves as a tool to assess a drone's propulsion system performance in a controlled and standardized manner. It comprises a sturdy framework to secure the motor and propeller, a load cell for thrust force measurement, a speed sensor to gauge motor shaft rotation, a power meter for monitoring voltage and current input, and a data acquisition system to record and display gathered data. Some test stands also incorporate a torque sensor to measure the force exerted by the motor on the propeller.


Utilizing a test stand, drone users can evaluate and enhance various aspects of their propulsion systems, including:


1. Thrust: This force propels the drone forward or upward and correlates with the mechanical power output of the propulsion system.

2. Torque: This force drives the motor shaft's rotation and aligns with the mechanical power input to the propeller.

3. Speed: The rotational speed of the motor shaft or propeller, impacting both thrust and system noise.

4. Power: The electrical supply to the motor or mechanical power output by the propeller, influencing energy consumption and drone battery life.

5. Efficiency: Representing the ratio of mechanical power output to electrical power input, indicating how effectively the drone harnesses energy and resources to achieve its objectives.


Battery Testing


The battery serves as the primary electrical power source for a drone, energizing its motor and various components. The battery's performance is influenced by multiple factors including type, capacity, discharge rate, voltage, current, and temperature. These factors directly impact the drone's flight duration and range on a single charge.


A test stand can systematically evaluate a drone's battery performance in a controlled setup. It can connect to a battery tester or a multimeter, allowing measurement of the battery's voltage and current under different load conditions. Additionally, it can link to a power supply or charger to administer various voltage or current levels to the battery.


Through employing a test stand, drone operators can assess and enhance different facets of their batteries, encompassing:


1. Capacity: The stored energy quantity within the battery, quantified in milliampere-hours (mAh) or watt-hours (Wh). It dictates the duration for which the battery can power the drone.


2. Discharge rate: The pace at which the battery releases energy, denoted in C-rating or amperes (A). This rate determines the amount of current the battery can supply to the motor and other components.


3. Voltage: The potential difference between the battery's positive and negative terminals, measured in volts (V). It influences the power output that the battery can deliver to the motor and other drone components.


4. Current: The flow of electric charge through the circuit, measured in amperes (A) or milliamperes (mA). It impacts the power consumption of the battery from the power supply or charger.


5. Temperature: The degree of heat or cold surrounding the battery, typically measured in degrees Celsius (°C) or Fahrenheit (°F). This factor affects the overall battery performance and its longevity.
