Nov. 22, 2023
Calculating the power of a drone motor is crucial for optimizing the performance of your drone. The power of a motor determines how efficiently your drone can lift off, carry payload, and maintain stability during flight. In this comprehensive guide, we'll walk you through the essential factors and equations for calculating the power of a drone motor.
Drone motor power is typically measured in watts (W) or, more commonly, in kilowatts (kW). It represents the rate at which a motor can do work or produce thrust, which is essential for keeping the drone airborne and maneuvering.
To calculate motor power, you need to consider various factors, including the drone's total weight, desired thrust, and the motor's efficiency.
Before we dive into the calculations, let's discuss the key factors that influence the power requirements for your drone:
2.1. Drone Weight: The total weight of your drone includes the frame, batteries, electronics, and any payload. The heavier the drone, the more power is needed to lift and maintain it in the air.
2.2. Thrust Requirements: The amount of thrust required depends on the drone's weight and the desired flight characteristics. Heavier drones or those with aggressive maneuvering capabilities require more thrust.
2.3. Efficiency: The efficiency of a motor, often expressed as a percentage, represents how effectively it converts electrical power into mechanical thrust. Highly efficient motors require less power to produce the same thrust.
2.4. Battery Voltage: The voltage supplied to the motor affects its power output. Higher voltage batteries can provide more power to the motor, but you must consider compatibility with your other drone components.
2.5. Propeller Size and Pitch: The choice of propeller greatly influences motor power requirements. Larger propellers or those with higher pitch generate more thrust but demand more power.
2.6. Flight Time: The duration for which the motor must operate impacts the power calculations. Longer flights require more power from the battery.
To calculate the power of a drone motor, you can use the following formula:
P=T⋅V/η
P is the power in watts (W).
T is the thrust in newtons (N).
V is the voltage in volts (V).
η is the motor efficiency (expressed as a decimal).
Let's break down each component:
3.1. Thrust (T): The thrust your drone needs depends on its total weight, the desired flight characteristics (e.g., hover, aggressive maneuvers), and environmental factors (e.g., wind speed). You can estimate the thrust required using data from motor and propeller specifications or through experimentation.
3.2. Voltage (V): This is the voltage supplied to the motor. It depends on your choice of batteries. For example, a typical LiPo battery might supply 11.1V, while a Li-ion battery could provide 14.8V. Be sure to use the correct voltage in your calculation.
3.3. Efficiency (\(\eta\)): Motor efficiency is usually provided by the manufacturer. It's expressed as a decimal (e.g., 0.85 for 85% efficiency). Higher efficiency means the motor can convert a larger portion of electrical power into mechanical thrust.
Let's work through an example to calculate the power of a drone motor:
Suppose you have a drone with a total weight of 1.5 kilograms (kg), and it needs to generate 20 N of thrust for hover. You're using a 4-cell LiPo battery with a voltage of 14.8V, and the motor you've chosen has an efficiency of 90%.
T=20N
V=14.8V
η=0.90
Now, use the formula:
P=T⋅V/η=0.9020N⋅14.8V=296W
So, your drone motor needs to produce approximately 296 watts of power to generate 20 N of thrust for hovering.
If your motor doesn't have enough power to meet your drone's thrust requirements, you have a few options:
5.1. Select a More Powerful Motor: Upgrading to a motor with higher power output is a straightforward solution. However, ensure that the new motor is compatible with your frame and other components.
5.2. Adjust the Propeller: Changing to a larger or more efficient propeller can increase thrust without changing the motor. Just be cautious of any potential weight and balance changes.
5.3. Reduce Drone Weight: Lightening the drone's overall weight can reduce the thrust needed, which may allow you to use a less powerful motor.
5.4. Optimize Flight Characteristics: If your drone doesn't require maximum thrust at all times, you can optimize the flight controller settings to reduce power consumption during certain flight phases.
Calculating the power of a drone motor is essential for ensuring that your drone can perform its intended tasks efficiently and safely. By considering factors like weight, thrust requirements, motor efficiency, battery voltage, and propeller selection, you can make informed decisions to achieve the desired power output for your drone. Keep in mind that drone motor power is just one piece of the puzzle in drone design and operation, and it should be integrated into a holistic approach to building and flying your drone.

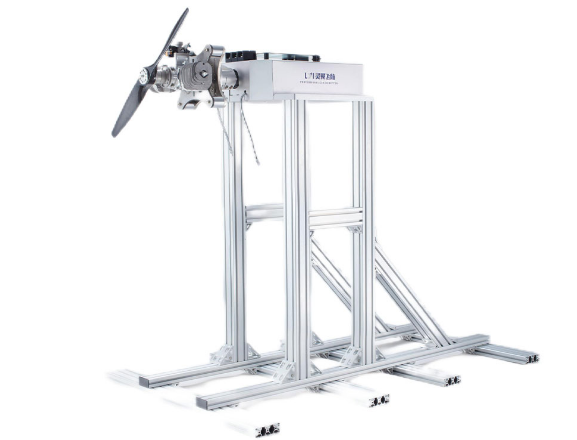

For reliable and precise motor testing, WingFlying offers a range of high-quality test stands for small, medium, and heavy propulsion systems.Interested in custom solutions? We tailor our products to meet your specific requirements. Download detailed specifications or reach out to us directly for more information.
