Selecting the Right Motor for Your Drone: A Comprehensive Guide

Oct. 26, 2023

Choosing the right motor for your drone is a critical decision that significantly impacts the performance, efficiency, and capabilities of your aerial platform. Drones come in various shapes and sizes, and the choice of  drones motor depends on factors like the drone's weight, intended use, and desired flight characteristics. In this guide, we'll explore the key considerations for selecting the appropriate motor for your drone.



 1. Understand the Basics



Before delving into motor selection, it's essential to understand the fundamental aspects of drone motors:



 1.1. Types of Motors



There are two primary types of electric motors used in drones:



1.1.1. Brushed Motors: These motors have internal brushes that come into contact with the commutator to control the flow of electricity and generate motion. They are simple, affordable, and suitable for smaller drones, but they tend to have a shorter lifespan and lower efficiency compared to brushless motors.



1.1.2. Brushless Motors: Brushless motors are more efficient and durable than brushed motors. They do not have internal brushes, resulting in less wear and tear. They are the preferred choice for most drones, especially larger and more advanced models.



 1.2. KV Rating



The KV rating of a motor indicates its rotational speed. It stands for "RPM per volt." A motor with a higher KV rating spins faster, while a lower KV rating produces slower rotations. Selecting the right KV rating depends on your drone's purpose and the size of its propellers. Higher KV motors are often used for racing drones that require quick acceleration, while lower KV motors are suitable for drones designed for stability and endurance.



 2. Consider Drone Weight and Size



The weight and size of your drone significantly influence the motor choice. Heavier drones require more powerful motors to lift off and maintain stable flight. To determine the right motor size, you'll need to consider both the drone's total weight (including batteries and payload) and its frame size.



 3. Think About the Payload



If your drone is intended to carry a payload, such as a camera or sensors, you must account for this additional weight. The motor you select should be capable of lifting the drone and the payload while maintaining the desired flight characteristics. Ensure the motor's thrust is sufficient to accommodate the added load.



Drone motors

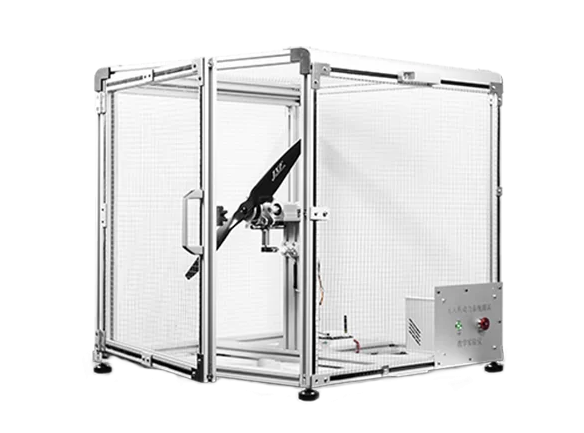

WF-EDU-01 Motor and Propeller Test Kit


 4. Calculate Thrust Requirements



The thrust required for your drone depends on its total weight and intended flight characteristics. The thrust-to-weight ratio is a crucial factor in determining the motor's ability to lift and maneuver the drone. You can calculate thrust requirements using the following formula:



Thrust=Weight of the Drone×Acceleration Due to Gravity

For example, if your drone weighs 2 kilograms (kg), the thrust required to maintain hover is:

Thrust=2 kg×9.81 m/s2=19.62 NThrust=2kg×9.81m/s2=19.62N



To ensure stable flight, you should aim for a thrust-to-weight ratio of at least 2:1. In this case, you'd need a motor capable of producing 39.24 N of thrust.



 5. Choose the Right Propeller



The propellers used on your drone significantly affect motor selection. Matching the motor to the propeller is essential for optimal performance. Different motors are designed to work with specific propeller sizes and pitch. Pay attention to the motor's specifications to ensure compatibility with your chosen propellers. Selecting the wrong combination can lead to inefficiency and poor flight characteristics.



 6. Battery Compatibility



The voltage of the battery you plan to use is another critical consideration. Motors are designed to work with specific voltage ranges. The choice of battery voltage affects the motor's RPM and power output. Make sure the motor's voltage range aligns with the voltage of your chosen battery.



 7. Efficiency and Motor Data



Efficiency is a key factor in motor selection. More efficient motors convert a higher percentage of electrical energy into mechanical power. Look for motor data provided by manufacturers, which should include efficiency ratings. High-efficiency motors are particularly important for drones designed for longer flight times.



 8. Motor Mounting



Consider how the motor will be mounted on the drone's frame. Different drones may have specific mounting requirements, and the motor's design and mounting options should align with your frame's configuration.



 9. Cooling and Heat Dissipation



Drone motors can generate heat during operation. It's important to ensure that the motor is designed to handle this heat and dissipate it effectively. Overheating can lead to motor failure and reduced lifespan.



 10. Test and Experiment



Choosing the right motor can involve some trial and error, especially if you are building a custom drone. It's a good practice to start with conservative motor choices based on calculations and then experiment with different motors and propellers to find the combination that best suits your drone's performance and stability needs.



 11. Conclusion



Selecting the right motor for your drone is a crucial step in achieving the desired performance and functionality. Consider factors such as drone weight, intended use, payload, thrust requirements, propeller compatibility, battery voltage, efficiency, and cooling when making your decision. By carefully assessing your drone's requirements and the available motor options, you can build or upgrade your drone to meet your specific needs and preferences.
