Mar. 06, 2025
The MET-VR6 is based on the MET-V6 software developed with the constant rotation speed control software, which can realize the setting rotation speed control of the motor.
The PID controller is used to measure the motor speed in real time, calculate the error with the target speed, and dynamically adjust the motor input signal PWM to eliminate the error, and realize the fast response and low jitter speed control by reasonably setting the PID parameters.

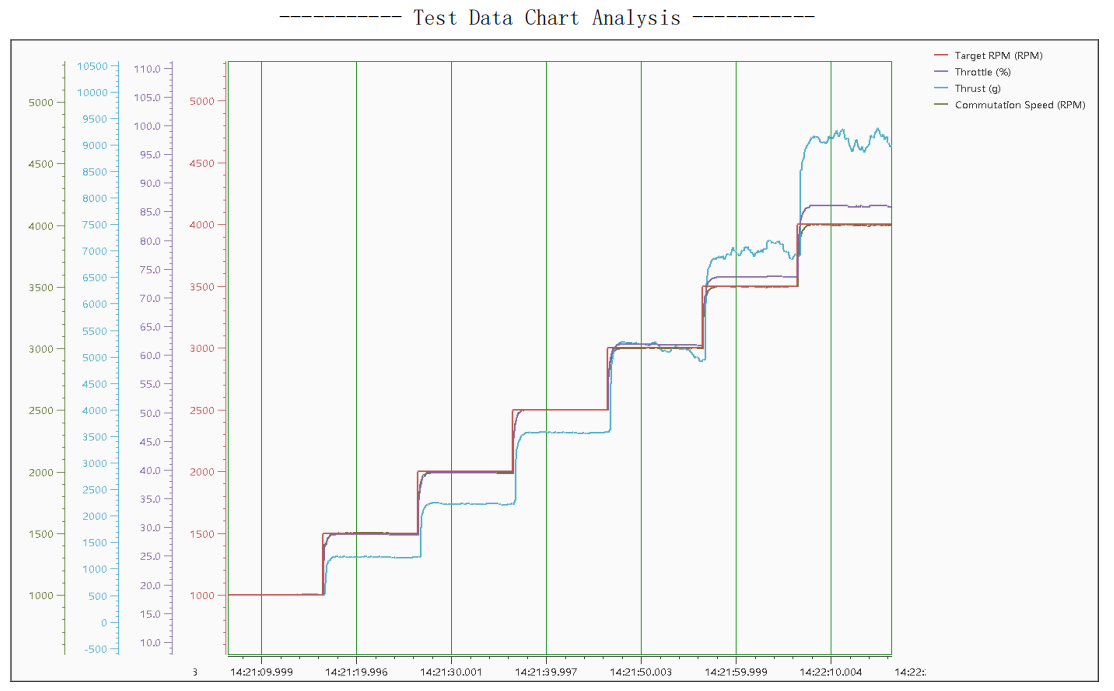

Rise time: <0.7S
Adjustment time: <1S (10% -90% max. rotation speed)
Overshoot volume: <1%
Steady-state error: ± 5 RPM (0.2% max. rotational speed)

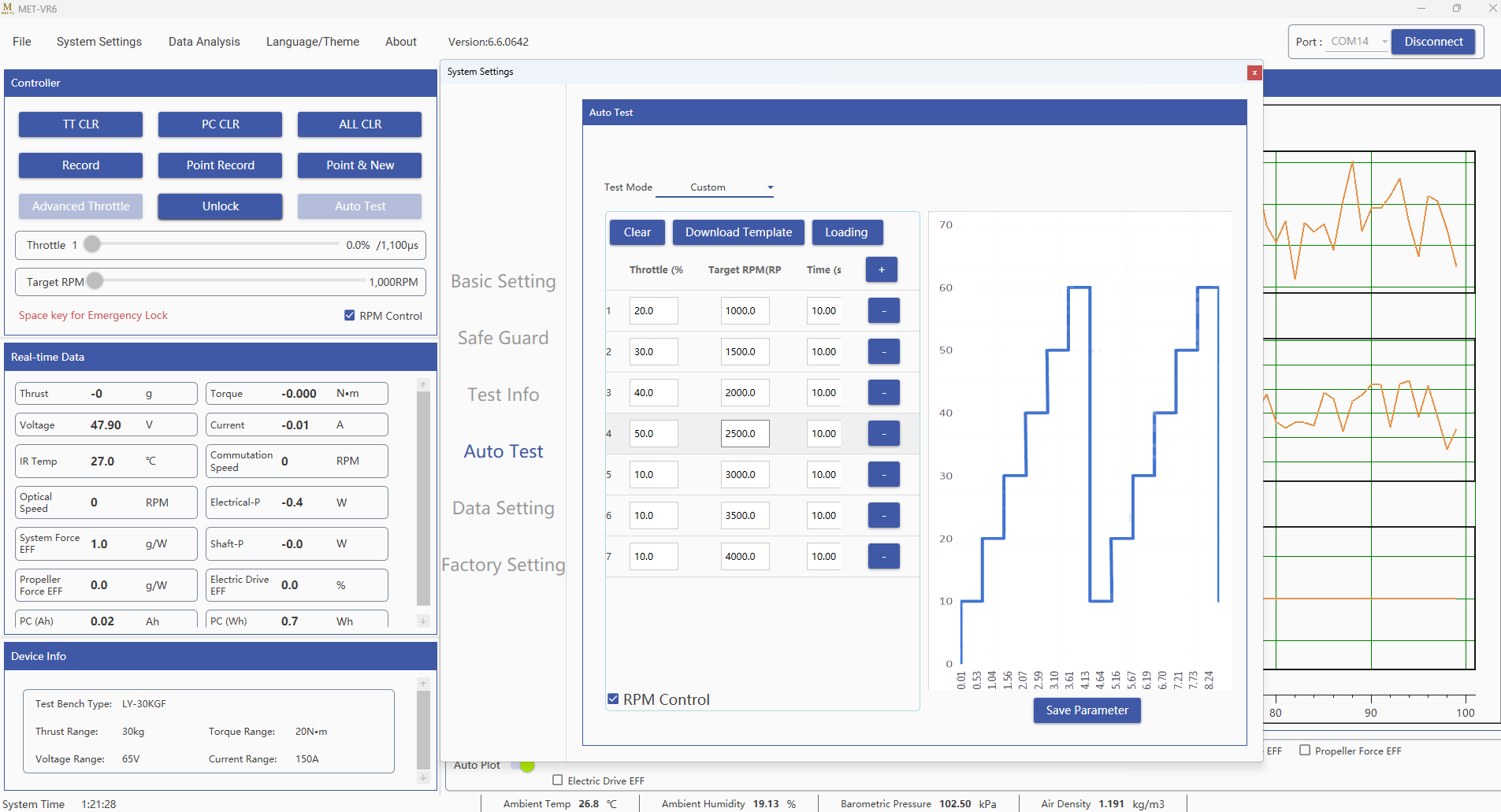

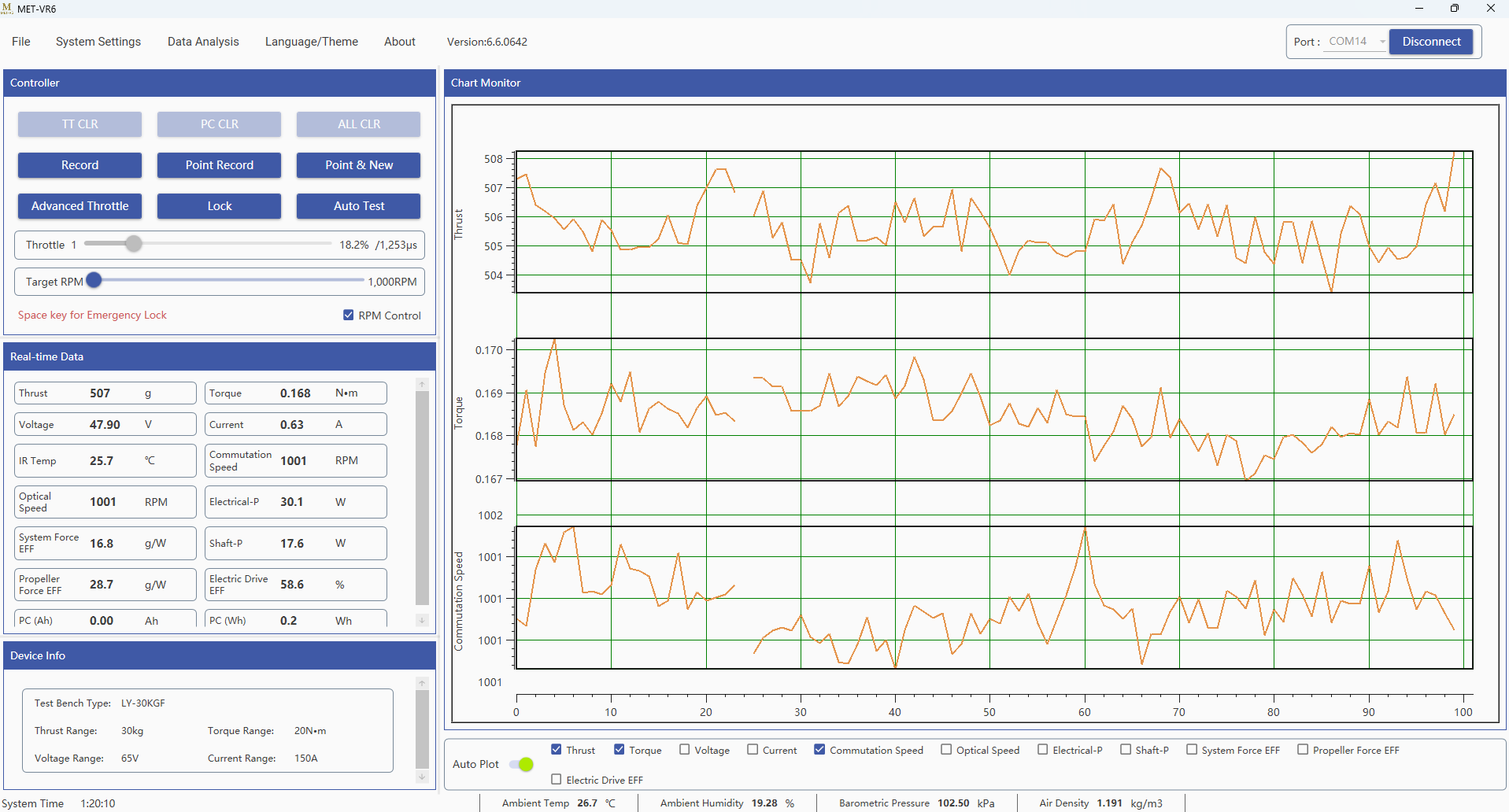

Main interface of the constant rotation speed software

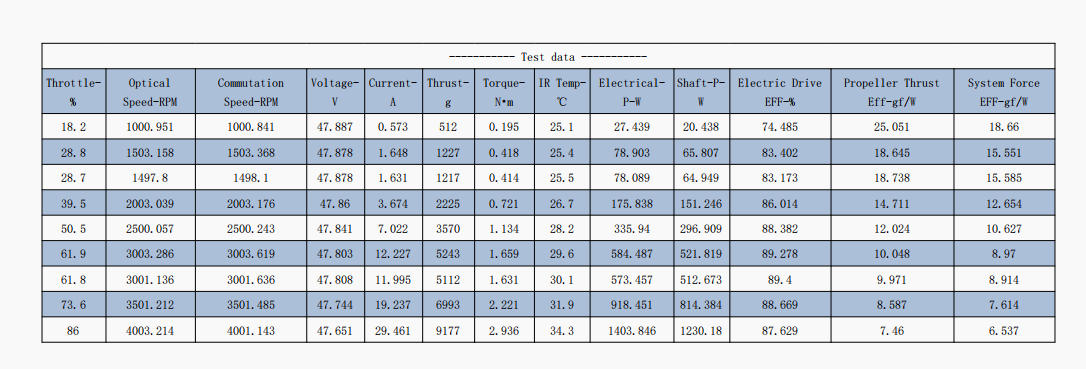

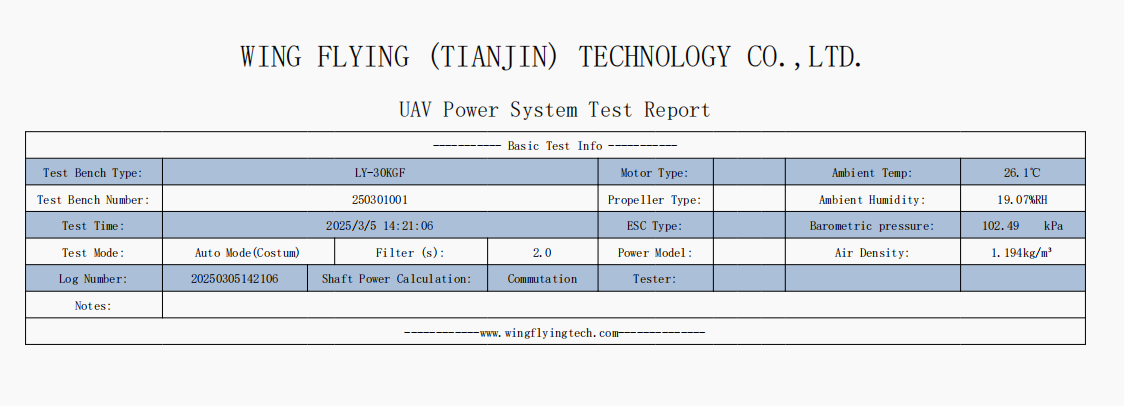

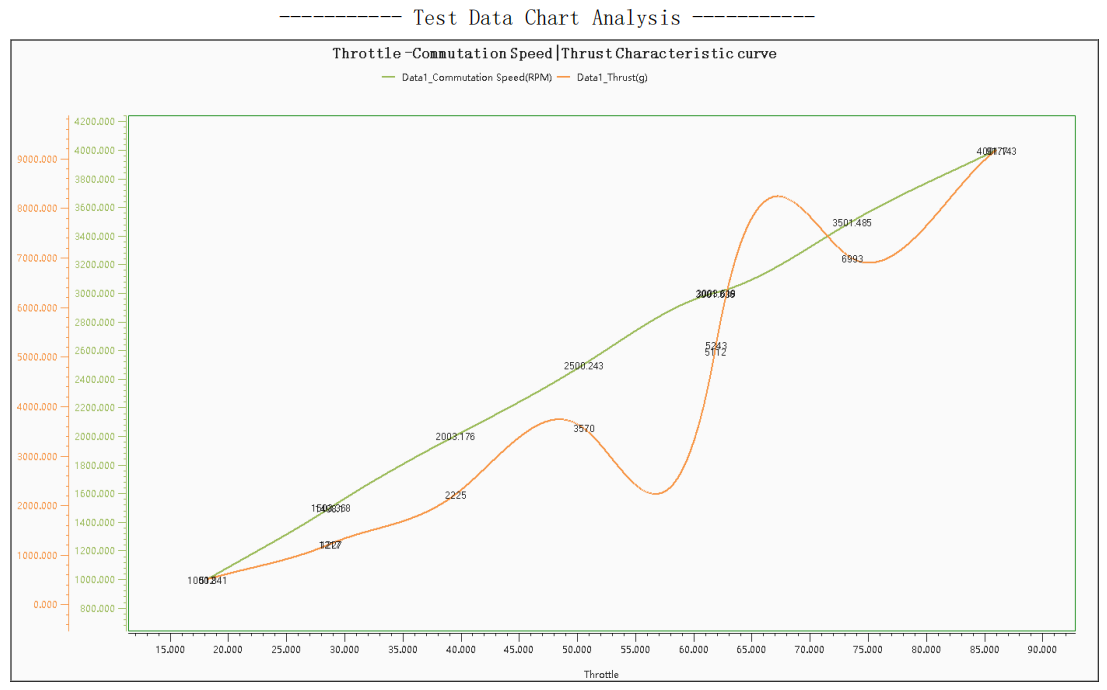

Functional demonstration test

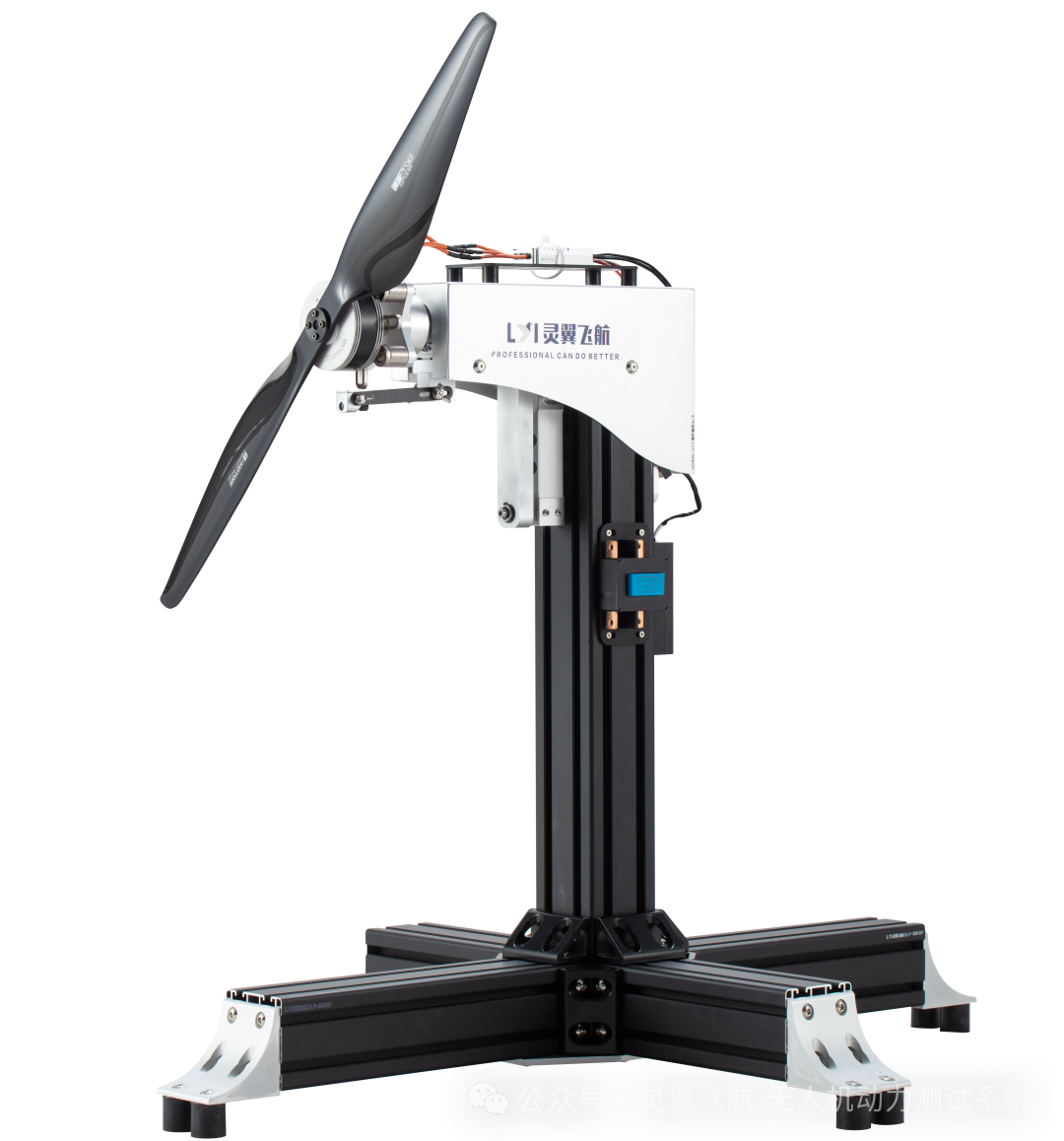

Test Instrument-LY-30KGF
Test software-MET-VR6

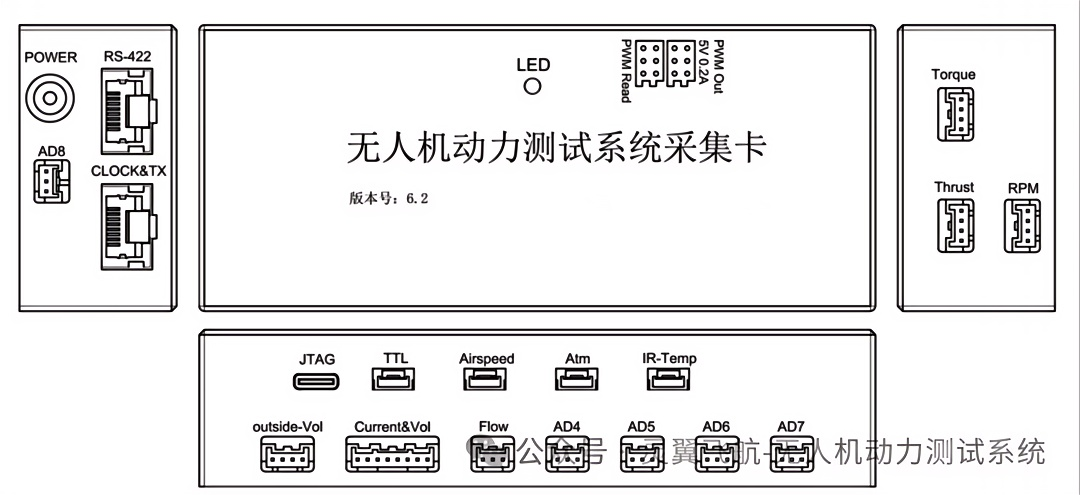

Acquisition system-EZ-TEST
Demonstration of Power-T-MOTOR

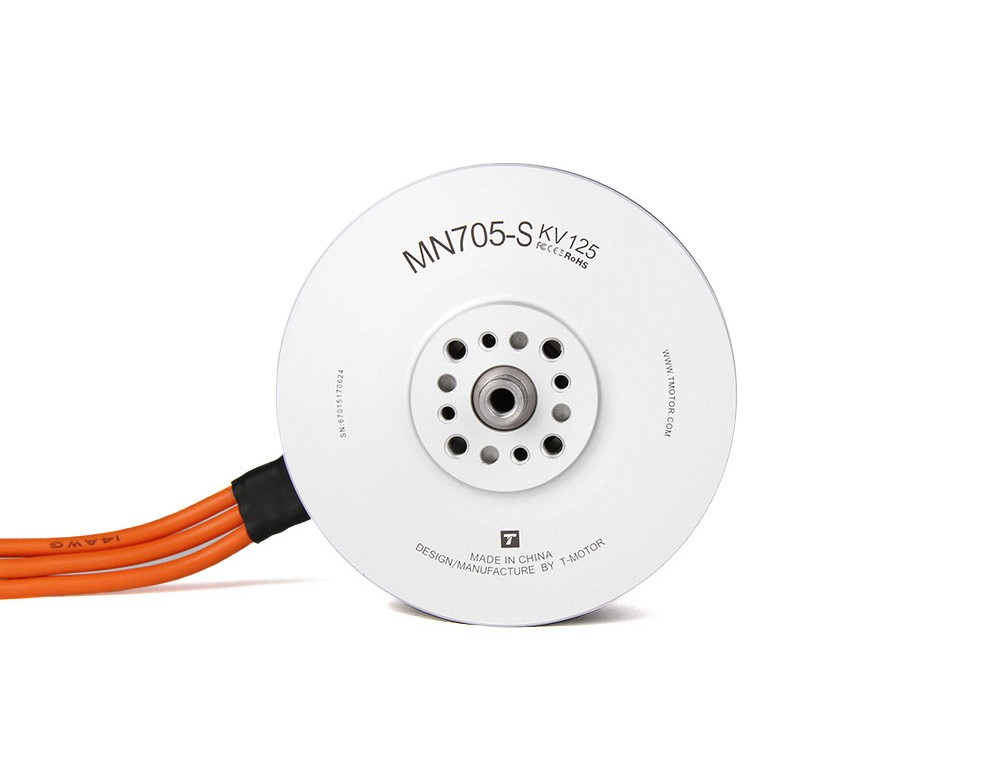

Motor-MN 705-KV125

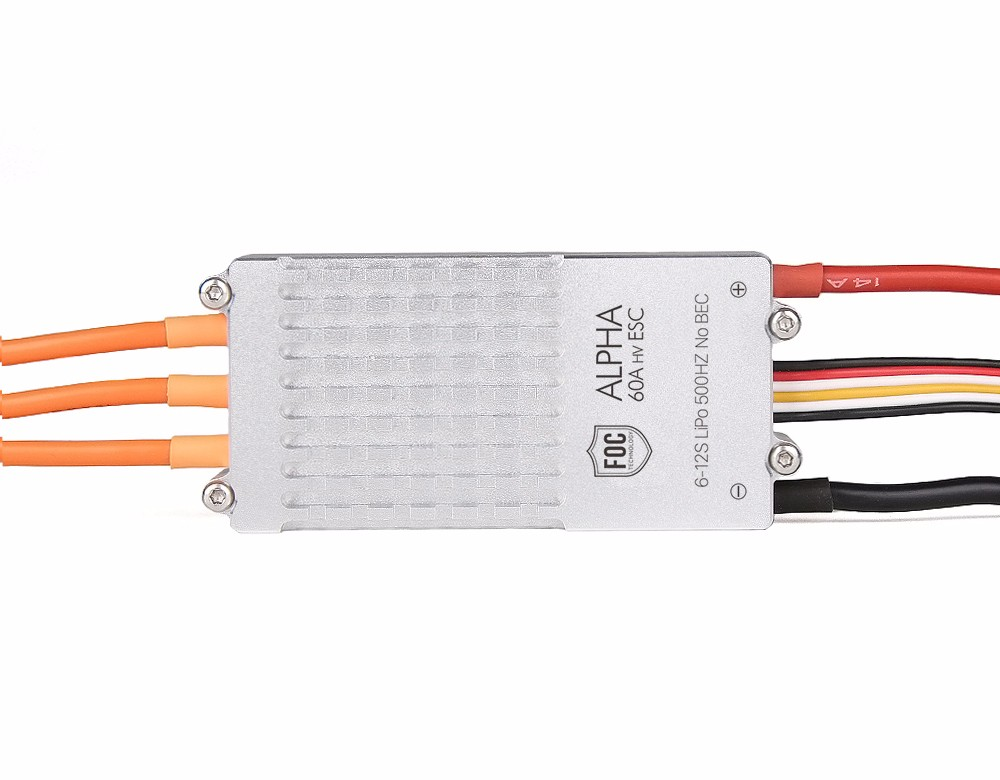

Electromodulation- -ALPHA 60A 12S

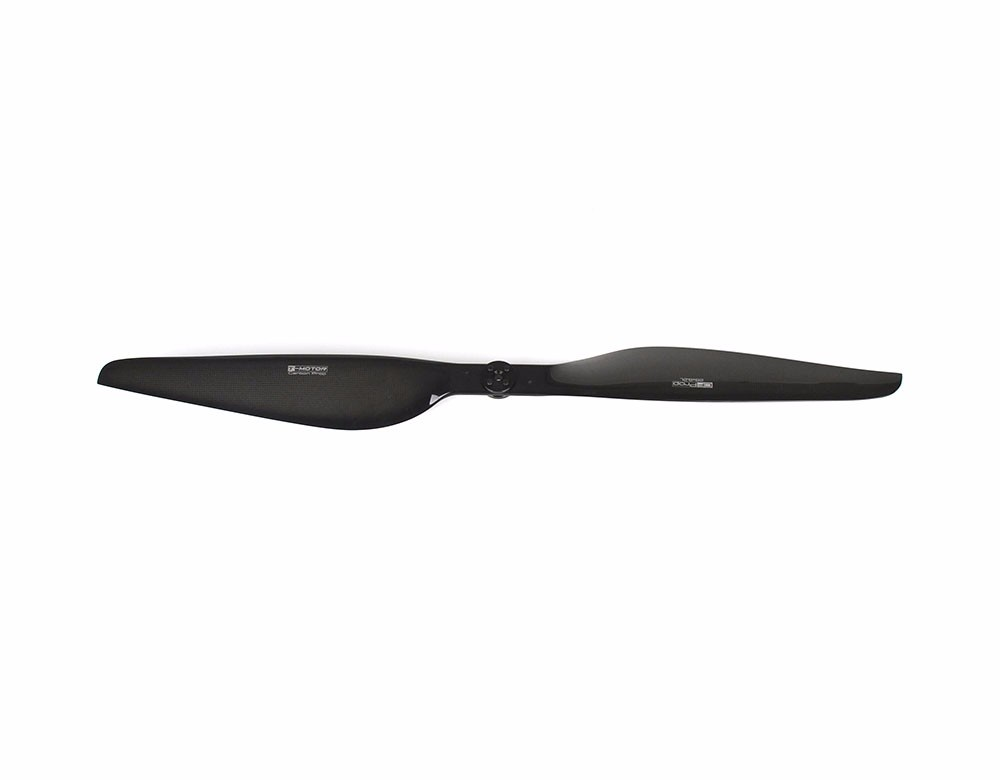

Paddle-G27 * 8.8
