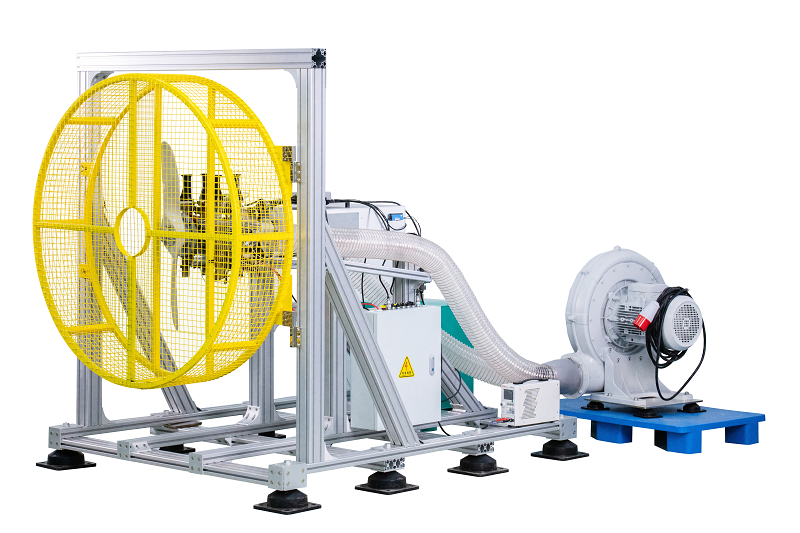

Our engine test bench, WF-EN-55, can test the engine from 110~550cc, max propeller 60in and engine weight max is 35kg.
We have our UPS power supply for the bench. You can control your engine on our bench so as to test thrust, torque, optical rpm, pulse rpm, cylinder temperature and exhaust temperature. We also offer the spare interface for clients to add their own sensors. The UAV engine test bench is also included the environmental module for testing.
About Limbach L550E, a lightweight four-stroke aircraft engine, designed for UAVs and light aircraft. It can be also tested on our engine test bench. Our clients are in the world, including many famous companies. You can test the power, fuel flow and fuel pressure as well. We can custom the cooling system for our clients as you want.
Here are our specification of WF-EN-55 engine test bench:
WF-EN-55 Engine Test Bench | ||
Basic Parameters | Operating Temp | 0 〜 +40 ℃ |
Operating Humidity | ≦80% No condensation | |
Storage Temp | -20 〜 +60 ℃ | |
Storage Humidity | ≦ 90% No condensation | |
Maximum Installed Weight | 35KG | |
Recommended Test Engine | 110~550CC | |
Max Propeller | 65 in | |
Equipment Power Supply | AC Power Supply | AC100-277V 2.8A |
Equipment Power Consumption | DC 24V 0.5A | |
Battery System | 12V/24V 20/10AH(CCA≧200A) | |
Charging Current | 15.4/7.7A MAX | |
Device Communication | Main Serial Port | RS-422@460800 |
Temperature Acquisition Serial Port | RS-485@115200 | |
Wired Communication | High-speed 422 via USB module + 485 via USB module | |
Wireless Data Transmission | Device Type | Dual-channel 422/485 full-duplex wireless transmission |
Working Frequency Band | 2400 MHz | |
Transmitting Power | 20 dBm | |
Communication Distance | 200 m | |
Engine Control | IO1-ECU Power Supply | 15A Relay (battery powered) |
IO2-Electric Starter | 300A Relay (battery powered) | |
IO3-Ignition 1 | 15A Relay (ground) | |
IO4-Ignition 2 | 15A Relay (ground) | |
IO5-Oil Pump 1 | 15A Relay (battery powered) | |
IO6-Oil Pump 2 | 15A Relay (battery powered) | |
IO7-Servo Power Supply | 15A Relay (battery powered) | |
Throttle servo PWM signal output 1 | 333Hz 800-2200μs | |
Choke servo PWM signal output 2 | 333Hz 800-2200μs | |
Thrust | Range | 150 kg |
Resolution | 0.01 kg | |
Instantaneous Overload | 200%F.S. | |
Destructive Overload | 400%F.S. | |
Accuracy | 0.2%+0.2%FS | |
Torque | Range | 150 N·m |
Resolution | 0.01 N·m | |
Instantaneous Overload | 200%F.S. | |
Destructive Overload | 400%F.S. | |
Sensor Accuracy | 0.2%+0.2%F.S. | |
Optical Speed | Range | 0 〜 15000 RPM |
Resolution | 1 RPM | |
Accuracy | 0.05%+0.05%FS | |
Pulse Speed | Range | 0 〜 60000 RPM |
Resolution | 1 RPM | |
Accuracy | 0.05%+0.05%FS | |
Supported Level | 1-5V | |
Cylinder Head | Type | PT100 |
Range | -20〜250 ℃ | |
Accuracy | ± 0.3 ℃ | |
Exhaust Thermocouple*2 | Type | K Type |
Range | -20〜650 ℃ | |
Accuracy | 0.05%+1℃ | |
Spare Temperature | Type | PT100/K Type |
Range | Same as above | |
Acquisition Accuracy | Same as above | |
Environmental Module | Barometric pressure range | 30 〜 110 kpa |
Barometric pressure resolution | 0.01 kpa | |
Barometric pressure accuracy | ±0.06 kpa | |
Ambient temperature range | -40 〜 85 ℃ | |
Ambient temperature resolution | 0.1 ℃ | |
Ambient temperature accuracy | ±1 ℃ | |
Humidity range | 0 〜 100%RH | |
Humidity resolution | 1 %RH | |
Humidity accuracy | ±3% | |
Optionals | ||
Instantaneous High-precision | Type | Ultrasonic measurement by non contact Clamp-type |
Range | 0-8000mL/min | |
Accuracy | 0.15%F.S. | |
Response time | 50ms | |
Fuel Flow Sensor | Range | -0.5 ~ 2 bar |
Accuracy | 0.2%+0.2%F.S. | |
Resolution | 0.01bar | |
Oil Pressure Sensor | Range | 0 ~ 10 bar |
Accuracy | 0.2%+0.2%F.S. | |
Resolution | 0.01bar | |
DC Voltage Sensor | Voltage Range | 5 〜 65 V（Optional 150V, 200V, 500V, 1000V） |
Voltage Resolution | 0.01 V | |
Voltage Accuracy | 0.05%+0.05%FS | |
DC Current Sensor | Current Range | 0 〜 200 A |
Current Resolution | 0.01 A | |
Current Accuracy | 0.1%+0.1%F.S | |
Safety Cage | Material | Square Tube Welding +Iron Mesh |
Dimensions | Outer Diameter 70inch | |
Protection Method | Ring Protection | |
Noise Sensor | Range | 30~120dB |
Accuracy | 0.5dB | |
Resolution | 0.1dB | |
Atmospheric Oxygen Sensor | Range | 0-25% |
Accuracy | 0.2% | |
Service Life | 1 Year | |
Airspeed | Difference Pressure Range | 1 psi |
Difference Pressure Resolution | 0.84 pa | |
Difference Pressure Accuracy | 0.01 | |
Airspeed Range (standard atmosphere) | 5 〜 100m/s | |
Airspeed Resolution | 0.1 m/s | |
L-type Pitot Tube Height | 800 mm | |
L-type Pitot Tube Coefficient | 0.99-1.00 | |
